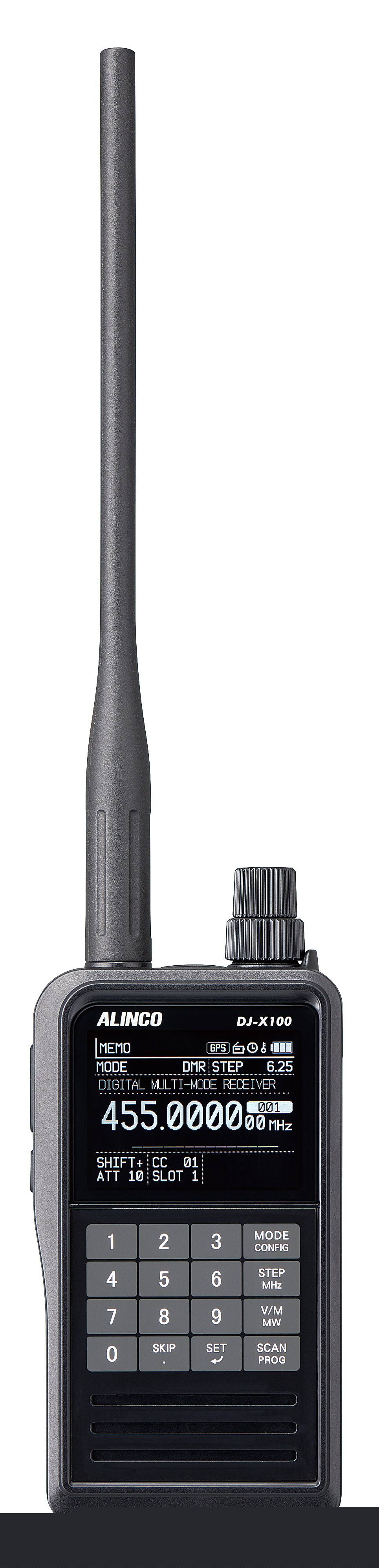

DIGITAL MULTI-MODE RECEIVER DJ-X100T/E

Features:
Intuitive operation with an easy-to-understand operation system
The setting menu is operated by dialing and the Enter key, and operation guide icons are displayed at the bottom of the screen. The hierarchical, easy-to-understand structure provides both multifunctionality and gentle operability.
USB Type-C port
Charging with an USB adapter (approx. 5 hours) or connection to a PC is now possible with only the included USB cable. It can also be recharged with a portable battery charger, so it can be used together with the optional dry cell battery case for long-time field reception.
Instrument-inspired design and easy-to-read color TFT LCD
A simple design reminiscent of a measuring instrument is adopted. The numeric keypad is finished smartly with membrane switches, and the screen display uses a 2.0-inch color TFT LCD with 320 x 240 pixels to display various information in a surprisingly easy-to-read manner. The display color can be freely specified using RGB values for the screen and text. The display color can be freely specified using RGB values for the screen and text. No matter what the color, the battery consumption is the same.
Equipped with a FM radio monitor
A dedicated IC is used for FM radio reception, allowing users to enjoy FM radio broadcasts when there is no communication. When a signal is received, the radio volume can be automatically lowered to make it easier to hear communications.
Receiving Modes
Analog Voice : AM / NAM / FM (20kHz) / NFM (12.5kHz) / FM radio broadcasts Digital Voice : DCR / NXDN / DMR (Tier 1/2) / D-STAR / C4FM (DN) / dPMR DATA : compatible FSK DATA signals (AIS and ACARS modes show texts and locations information on the display)
SDR configuration with low-current-consumption DSP
A low-current-consumption DSP is used for demodulation processing of digital AND analog signals.
Find the nearest radio station with GPS
The GPS receiver is compatible with MICHIBIKI, GALILEO and GLONASS, and the "in-range search" function,which calls up only the memory channels of radio stations whose longitude and latitude are registered in advance.
Equipped with 999 high-function memory channels
The 999 channel memory system supports advanced memory channel operation by registering a wide variety of data,including communication settings, memory names with 14 double-byte characters (28 single-byte characters), location information, and multiple registrations in 26 banks. (The ch 001 is used for priority-scan function.)
Position Display mode displays stations'positions on the screen
GPS position information and the position information contained in the received data signal are analyzed to display the other party's position and heading. AIS mode (position information transmitted by the vessel in real time) displays the vessel's position, direction of travel, and distance from the receiving location.
Editing and position display software
Utility software for memory, bank, and various scan-link settings and name entry, as well as location display software that allows location information to be overlaid on a map, will be distributed free of charge from the Alinco website. The 12 kHz IF output (W/N) used by third-party receiver software is also supported.
AND MORE---
Programmed scans can be freely set up to 50 pairs, which can be connected to form up to 20 sets of links, allowing for a variety of scans.
Timer skip, which is automatically cancelled after a specified period of time has elapsed.
Priority scan that operates even during scanning to ensure that the desired signal is not missed.
Convenient backlight control, such as turning on when scanning is stopped or when audio is output.
Offset step for easy step switching>
CTCSS and DCS decoding including reverse.
Analog tones/codes and DCR/NXDN user codes are automatically analyzed, received and displayed.
9 status of VFO/Memory, Scan, Setting screens, etc. can be instantly recalled with a long press of a key.
Message display function that automatically displays text information when received.
Large-diameter speakers and BTL amplifiers for high volume
Commercially available stereo earphones usable (monaural audio)
* Cellular frequencies blocked on all models.
* Inversion-scramble decoder is available in E-version only

Indicative battery duration (Approx):
Condition : RX 6sec, Stand-by 54sec Battery save ON.
Battery pack / Dry cell battery case.
GPS/FM broadcasting : Off 16 hours / ON 7 hours
GPS : On (FM off) 13 hours / 6 hours
FM : On (GPS off) 12 hours / 5 hours
* Operating times may vary subject to usage and settings. High-grade alkaline cells recommended.


Specifications
Receiver range: 30.0 ~ 470.0MHz / 76.0 ~ 108.0MHz (WFM Only)
Mode: Analog: FM/NFM/AM/NAM/WFM/DCR/DMR/NXDN/dPMR/D-STAR voice/C4FM (DN) / AIS & ACARS data
Antenna Impedance: 50 ohms (SMA)
Supply voltage: Li-ion battery 3.6Vdc (EBP-114A, 3120mAh)
Dry cell battery (optional EDH-43: 3AA 4.5Vdc)
External power supply (USB Type-C) 5Vdc
Current consumption(approx.): Standby: 150mA (BS ON, backlight, FM mode, GPS OFF) / 300mA (Backlight/WFM mode OFF, GPS ON)
Receiving: 500mA (FM rated output, backlight/WFM mode OFF, GPS ON)
Temperature range: Reception: -20degC to +60degC (-4 to +140 degF)
Charging: +10 to +40degC (50 to 104degF)
Frequency stability: -7 to +3ppm(-10 to +60 dig C)(+14 to +140 dig F)
Dimension without projection: Width 58(2.283) x height 110 (4.331) x depth 32.5mm/in. (exclude antenna)
Weight: Approx. 260g/9.171ounce (including antenna and battery pack)
Belt clip: Approx. 14g/0.493 ounce
Receiver: [FM/AM/Digital/Data] Triple Super Heterodyne Conversion / 1st IF : 243.95MHz. / 2nd IF: 50.85MHz / 3rd IF 450kHz
[WFM] Direct Conversion
Sensitivity: FM / NFM: -10dBuV (12dB SINAD)
AM / NAM: 2dBuV (10dB S/N)
T98: -10dBuV (BER 1%) / DMR: -7dBuV (BER 1%)
D-STAR: -10dBuV (BER 1%)
C4FM(DN): -7dBuV (BER 1%)
AIS: -5dBuV (BER 1%, 162MHz only)
WFM: -2dBuV (12dB SINAD)
Filter width: FM = 15kHz / NFM = 9kHz / AM = 9kHz / NAM = 6kHz
Audio Output power: Internal Speaker 400mW(10% distortion / 8ohm)
External Terminal 40mW(10% distortion / 32ohm)
Specifications subject to change without notice or obligation.
Cellular frequencies blocked. E- version is available with proper documentation for authorized users only in certain countries.

Standerd Accessories
DJ-X100TE
Li-ion battery pack (EBP-114A) / USB adapter EDC347 (T) EDC348 (E) USB cable (EDS-39) / Whip antenna (EA-295) / Belt Clip (EBC-65 : Installed)

Optional Accessories
Charging stand set (EDC-325T): A set of a quick charging stand and an AC adapter.
Soft case (ESC-65): Can be used with the belt clip attached.
Battery case (EDH-46): Uses three AA alkaline batteries
