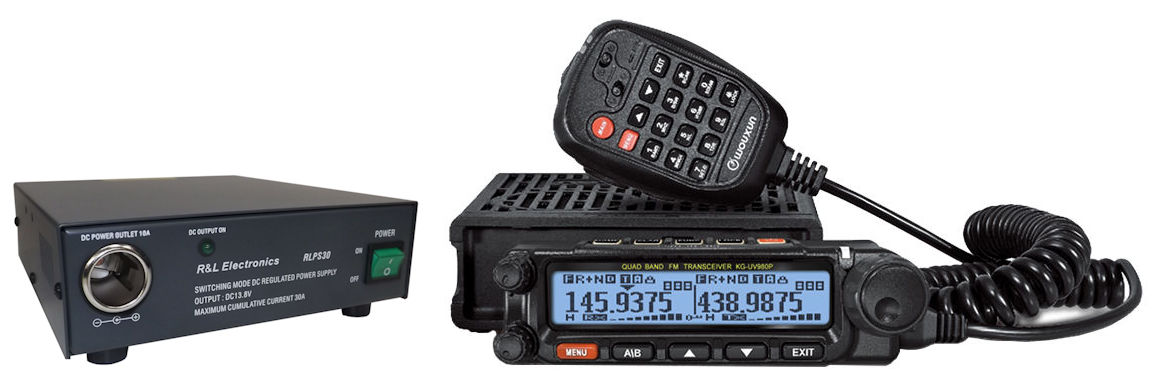

KGUV980P
Dual Frequency Display, Dual Independant Operation System
Eight Bands for Receiving , Four Bands (Including SW) for Transmitting
Twin Band / Same Band Simultaneous Reception
999 Memory Channels
Front Panel And Radio Body Flexible For Separation
QT/DOT Encoding And Decoding
QT/DOT Scanning
Non-standard CTCSS/DCS Setting Freely
Same Band Repeat on Two Combined Radios
Dual Track And Multi-way Loudspeakers
Hand Microphone DTMF With Loudspeakers
Caller ID Display
DTMF Encoding And Decoding
Multiple Scanning Ways
Group Calls, All Calls And Selective Calls
8 Groups of Scrambler
Priority Channel Scanning
APO Power Management
Wide / Narrow Bandwidth Selectable
Chinese or English Voice Guide
Automatic Temperature Detection
Stun / Kill Function
Single Audio Pulse Frequency
Multiple Back Light Color Selectable
Scan Channel Adding / Deleting
Grouping Channel Scanning
Multiple Setting for Cooling Fan
Superheterodyne Receiver Type

Frequency Range
Suitable For Different Countries or Areas
TX , FM
26-29.995MHz / 50-53.995MHz
144-147.995MHz / 430-449.995MHz
RX , FM
26-29.995MHz / 50-54.995MHz / 65-108MHz
108-180.995MHz / 320-349.995MHz
400-479.995MHz / 700-987.995MHz
RX , AM
108MHz-136MHz

Step 5KHz/6.25KHz/10KHz/12.5KHz/25KHz/50KHz/100KHz
Channel Number 999
Work Mode F2D/F3E
Operating Temperature -20?~+60?
Voltage 13.8VDCñ15%
Antenna Impedance 50ê
Weight 1438 g
Size 140 x 44 x 207 MM

Output Power VHF(5W/10W/25W/50W) UHF(5W/10W/25W/40W)

RLPS30
This power supply is perfect to run your mobile radio as a base unit. This will handle any radio from 0-100 watts of output. Power switch is on the front with convenient binding posts on the back, makes for a neat installation.

1. input voltage： 110V/60Hz
2. output voltage： Fixed 13.8VDC±0.5V
3. output voltage regulation: less than 2ï¼…
4. protection Over load, Over Temperature, Short Circuit Protection by Constant Current Circuitry and Output Over Voltage Protection
5. output current：30A（max），25A（continuous）
6. Ripple & Noise：≤100mVp-p
7. fuse： 110V:8A
8. Dimensions：181x63x190 mm
9. Weightï¼›1.6kg
