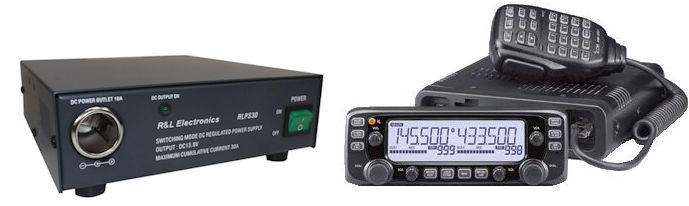

IC2730A
Analog has never been so simple as with the IC-2730A! The IC-2730A is an easy to use, dual band mobile with simultaneous receive as 50 Watts RF output on both VHF and UHF. The separate tuning, volume, and squelch knobs, as well as basic
control buttons, on each side of the radio, allowing you to have quick and precise control over your radio without taking your eyes off the road.

VHF/VHF, UHF/UHF Simultaneous Receive
The IC-2730A provides VHF/VHF, UHF/UHF simultaneous receive capability as well as VHF/UHF receive. Main dials, volume, squelch knobs and primal buttons are symmetrically laid out for each band.

Easy Visibility
The display size of the IC-2730A is 1.5 times larger its predecessor, the IC-2720H. Frequency display and channel names are larger, and the white backlight provides higher contrast.

Optional Bluetooth
Install the UT-133A board into the radio to add Bluetooth. The board plus the Bluetooth headset allows the user to wireless control the IC-2730A with three programmable and a PTT button. It also provides VOX operation for hands-free
communication.

Mounting Options
The combination of the optional MBF-1 suction cup mounting base and MBA-5 controller bracket provides easy tilt and swivel adjustments. The large suction cup can be mounted on flat surfaces and can be removed easily.

With the optional MBA-4 combination bracket, the controller can be attached to the main unit. The microphone jacks are mounted on both the controller and main unit.

Additional Features

• Built-in 50 CTCSS and 104 DTCS tones with Split Tone Function


• CS-2730 free download PC programming software


• Versatile scanning capability


• Squelch delay and squelch attenuator


• Sub band auto mute function


• Sub band busy beep function


• Full duplex, it will transmit on one band while receiving on the other at the same time



• Auto repeater functions (Depending on the transceiver version)


• Auto power off


• Time-out-timer


• 16 DTMF auto dial memories


• Weather channel receive with weather alert


• CI-V remote control capability (through the OPC-478UC)

RLPS30
This power supply is perfect to run your mobile radio as a base unit. This will handle any radio from 0-100 watts of output. Power switch is on the front with convenient binding posts on the back, makes for a neat installation.

1. input voltage： 110V/60Hz
2. output voltage： Fixed 13.8VDC±0.5V
3. output voltage regulation: less than 2％
4. protection Over load, Over Temperature, Short Circuit Protection by Constant Current Circuitry and Output Over Voltage Protection
5. output current：30A（max），25A（continuous）
6. Ripple & Noise：≤100mVp-p
7. fuse： 110V:8A
8. Dimensions：181x63x190 mm
9. Weight；1.6kg
